Convince managers to address Tech Debt with Enclosure Diagrams

Struggling with Legacy Code and not enough time to clean it up?
⛑️️ My First Aid Kit can help you rescue any codebase quickly and safely!

Do you feel powerless to address technical debt, because management doesn’t seem to care in fixing what’s already there?

It’s always about new features and short deadlines. As they say:

“Clients won’t give money for replacing something that works with something else that may work!”

Managers and developers have different drivers, but they’re working for the same company. These conflicting points of view can be solved with better communication and a few arguments can help.

If only you could come up with a plan to make your team faster than ever, you’ll get management support for sure! But measuring technical debt is hard and they don’t understand technical details anyway…

Hopefully, there is one simple and efficient way to prioritize which tech debt to address first: Hotspots analysis.

The concept is simple enough for managers to understand the value. Some parts of the code are changed frequently. Keeping these ones clean has a major impact on your productivity. That’s a great ROI for the business!

With Hotspots, you can build a reasonable refactoring plan to make a case for. It’s a very pragmatic way to start doing something 👊

But how will you explain that decent plan without losing them into technicalities of Churn and Code Complexity? Well… You can practice your presentation skills, or you can use “Enclosure Diagrams”.

Why are Enclosure Diagrams so great?

Enclosure diagrams help to visualize data as spaces contained inside others (usually rectangles).

They intuitively reveal 2 interesting aspects:

  1. The hierarchy of things
  2. The relative importance of things

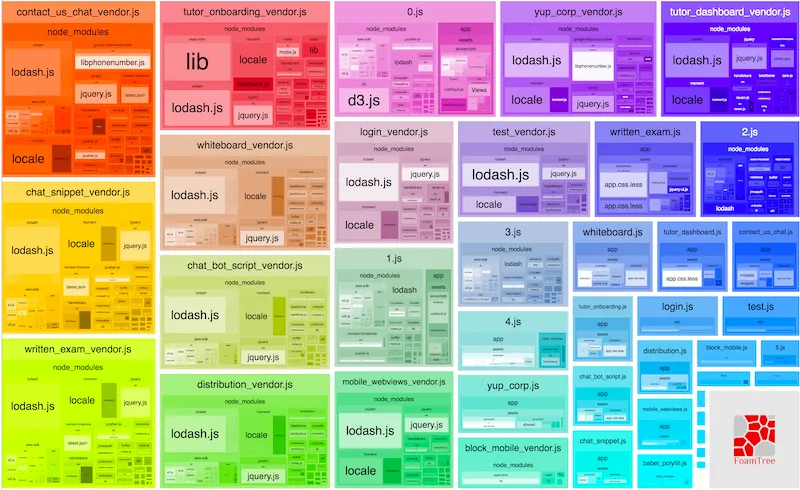

Treemaps are the most popular kind of enclosure diagrams. If you ever generated the treemap of a webpack bundle, you already realized how helpful these are:

webpack chart

Enclosure diagrams to identify Hotspots of a system is an idea I discovered reading Software Design X-Rays from Adam Tornhill. This is an excellent book that showcases techniques to understand Legacy Code based on behavioral analysis. I will write a summary of its salient parts someday…

The great news is: an enclosure diagram will help you explain to non-technical people the impact and importance of your system Hotspots.

And here’s the greater news: you can generate one for your codebase within a few minutes!

Using code-forensics to generate Hotspots enclosure diagrams

Adam Tornhill created a tool to generate the diagrams: code-maat.

That’s great stuff, but Silvio Montanari built a tool on top to make the process even easier: code-forensics.

This tool can give you a lot of insights from your codebase using behavioral data. Here, I’ll focus on Hotspots. This is the one thing you need to make a case for refactoring Tech Debt.

Let’s use it on a very concrete example 🤠

Analyzing Docker compose Hotspots

Here’s the docker/compose codebase.

I’ve chosen this one for 3 reasons:

  1. It’s very popular. Regardless of what language you’re working with, you may have used (or heard of) Docker already.
  2. I’m not familiar with the codebase. I bet you’re not. Yet, we’ll get insights within minutes out of it.
  3. It seems big enough to gather interesting data.

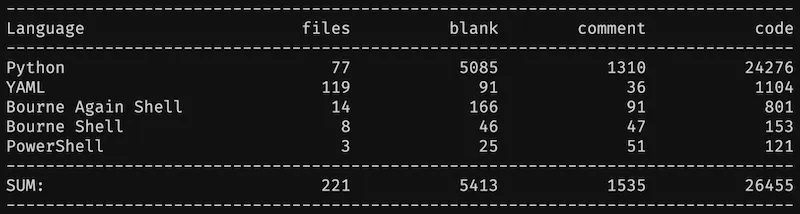

Indeed, cloc says this repository has ~26k lines of code:

docker compose cloc

It’s nothing compared to an actual Legacy codebase. But that’s big enough to illustrate.

Diving in, step by step

I’m decomposing every single step so there’s no magic. I suggest you reproduce the steps on your side so you can feel how it works.

0) Pre-requisites

To run the analysis, you need to have installed:

For the record, I’m running the following analysis with node 13.5.0, npm 6.13.4, and Java 8. I’m using macOS, but that should work on Linux fine and probably on Windows too.

1) Clone the docker/compose repository

bash
git clone git@github.com:docker/compose.git

2) Create a local repository where to host your analysis

bash
mkdir code-forensics-analysis && cd code-forensics-analysis

You should have this structure:

|__ code-forensics-analysis/ |__ compose/

3) Initialize a node project

bash
npm init -y

This should generate the following package.json:

json
{ "name": "code-forensics-analysis", "version": "1.0.0", "description": "", "main": "index.js", "scripts": { "test": "echo \"Error: no test specified\" && exit 1" }, "keywords": [], "author": "", "license": "ISC" }

4) Install code-forensics dependency

It needs Gulp 4+ to work, but don’t install Gulp globally.

Instead, I recommend to install both locally. That’s less side-effects to deal with:

bash
npm install --save-exact code-forensics gulp@4.0.2

Here’s what my package.json looks like now:

json
{ "name": "code-forensics-analysis", "version": "1.0.0", "description": "", "main": "index.js", "scripts": { "test": "echo \"Error: no test specified\" && exit 1" }, "keywords": [], "author": "", "license": "ISC", "dependencies": { "code-forensics": "2.3.1", "gulp": "4.0.2" } }

5) Create a gulpfile.js

bash
touch gulpfile.js

Fill it with basic configuration:

js
require("code-forensics").configure({ repository: { // Relative path to the `docker/compose` repository rootPath: "../compose", }, })

6) Create a server to see your HTML reports

Update your package.json scripts to add a start command:

json
{ "name": "code-forensics-analysis", "version": "1.0.0", "description": "", "main": "index.js", "scripts": { "start": "gulp webserver" }, "keywords": [], "author": "", "license": "ISC", "dependencies": { "code-forensics": "2.3.1", "gulp": "4.0.2" } }

Then, run npm start to start serving reports from http://localhost:3000/.

There’s no report for the moment, let’s create a first one.

7) Run the Hotspots analysis

Scripts can be run with Gulp. As we installed it locally, we can access it from npm scripts.

Add this hotspot script to your package.json scripts:

json
{ "name": "code-forensics-analysis", "version": "1.0.0", "description": "", "main": "index.js", "scripts": { "start": "gulp webserver", "hotspot": "gulp hotspot-analysis --dateFrom=2019-06-01 --dateTo=2020-06-01" }, "keywords": [], "author": "", "license": "ISC", "dependencies": { "code-forensics": "2.3.1", "gulp": "4.0.2" } }

I’ve constrained the analyzed period so you can reproduce the same reports. You can omit --dateTo, but it’s convenient to know you can reproduce your analyses at any time!

Also, I generally recommend analyzing the past 12 months. You don’t need more.

Now, run npm run hotspot. Keep your server running in a terminal.

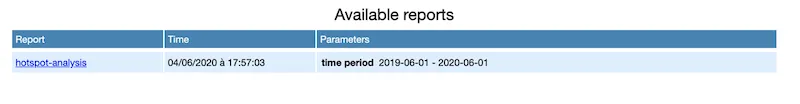

Open or refresh http://localhost:3000/ to see the report appear:

reports

If you open the report, here’s what you’ll see:

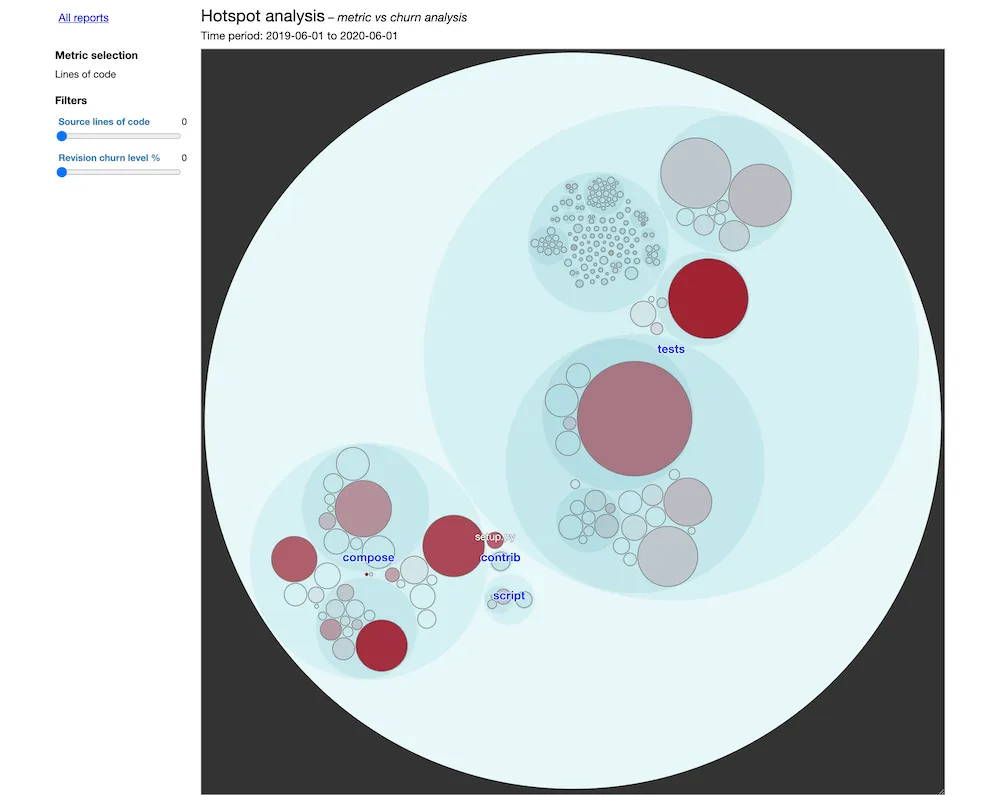

hotspot analysis

That’s it. This is your enclosure diagram. You’re done!

Analyzing the data

Here’s how the diagram works:

  • Each bubble represents a folder or a file, following the codebase architecture.
  • The size of a bubble corresponds to its complexity.
  • The more red a bubble is, the most frequent it is touched.

Therefore:

Focus on refactoring the big red bubbles first.

This is the message you will convey to your managers. The goal is not to clean the code for the sake of it, but to take strategic decisions for the business.

These big red bubbles are quite visual!

People will understand these are the critical bits to address. These are your top blockers for team productivity, based on the past 12 months’ actual work!

Digging into docker/compose Hotspots

The diagram is interactive. You can click on the bubbles to zoom in down to the file level.

We can see 2 major Hotspots in this codebase:

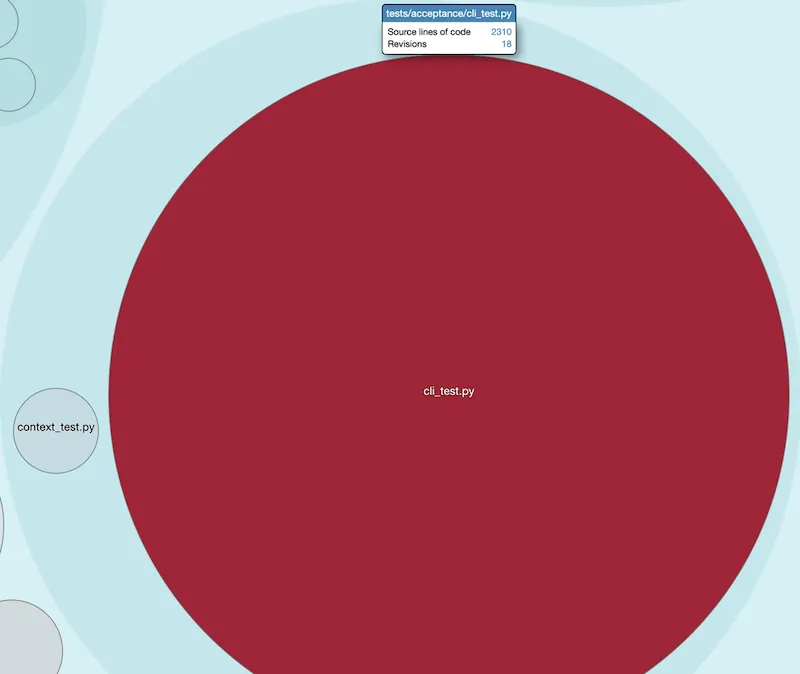

  1. cli_test.py, which is not a surprising pattern for me.

    I bet this has become the God Test that catches all bugs. I’d suggest to identify and extract related tests to make it easier to write and update them.

    first hotspot

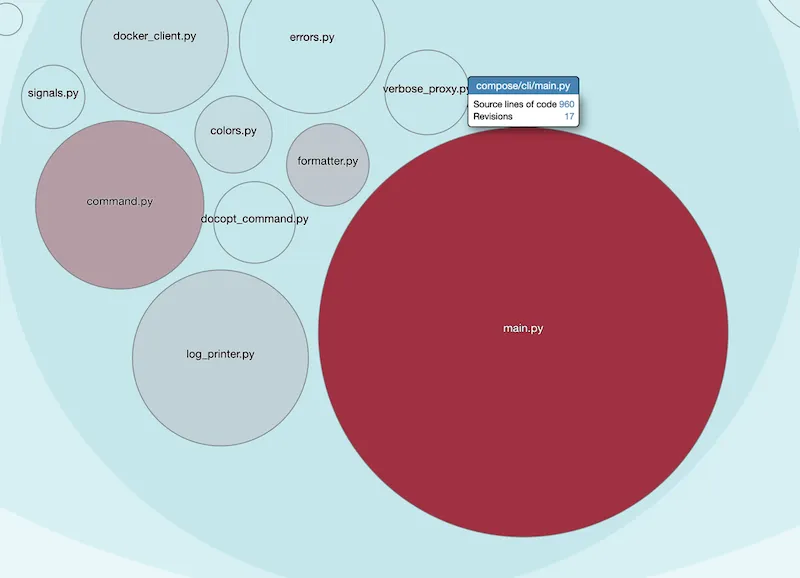

  2. cli/main.py, which is also a typical pattern.

    Main files conveniently combine many different responsibilities. You need a main file. But the fact it’s so frequently touched is an indicator that we’re mixing different levels of abstraction there, in my opinion. Identify and extract these responsibilities will probably have the best impact on the codebase maintainability.

    second hotspot

These 2 files combined represent ~3k LOC out of this ~26k LOC project.

Within a few minutes, you were able to prioritize work on the 10% that matters the most, without knowing much about the codebase.

Imagine what you can do with this skill on the codebase you’re working with every single day.

Picture yourself presenting clear diagrams to management and win their support for the most foundational refactoring work you can do to improve your system.

Now, open your eyes and go generate the Hotspots diagram of your Legacy codebase! 👍

If you want to go further, run a Knowledge Map analysis to find out who to ask for help for the refactoring work.

Nicolas Carlo

Written by Nicolas Carlo who lives and works in Montreal, Canada 🍁
He founded the Software Crafters Montreal community which cares about building maintainable softwares.
